Binary Classification Model: Predicting Titanic Survivors with Python

Using Scikit-learn

1 Introduction

This document provides a comprehensive, step-by-step guide to building a binary classification model using Python and the scikit-learn library. We will tackle the classic Titanic dataset, a rich collection of passenger data, to predict survival. This project will walk you through the entire machine learning pipeline, from initial data loading and exploratory data analysis (EDA) to sophisticated model training, hyperparameter tuning, and final model evaluation and deployment.

The primary goal is to demonstrate a robust and reproducible workflow for classification tasks. We will explore various algorithms, compare their performance, and select the best model for making predictions on unseen data.

2 Installing and Loading Libraries

2.1 Step 1: Install Necessary Libraries

First, we ensure that all the required Python libraries are installed using pip.

Code
# This command installs all necessary libraries.
# It's set to not evaluate by default to avoid re-installing every time.
!pip install scikit-learn pandas numpy matplotlib seaborn xgboost joblib

2.2 Step 2: Load Libraries

Next, we load the libraries that will be used throughout the analysis. Each library serves a specific purpose, from data manipulation (pandas) to modeling (scikit-learn) and visualization (matplotlib, seaborn).

Code
# Core libraries
import pandas as pd
import numpy as np
import joblib

# Plotting
import matplotlib.pyplot as plt
import seaborn as sns

# Scikit-learn for preprocessing and modeling
from sklearn.model_selection import train_test_split, StratifiedKFold, GridSearchCV
from sklearn.preprocessing import StandardScaler, OneHotEncoder
from sklearn.impute import SimpleImputer
from sklearn.compose import ColumnTransformer
from sklearn.pipeline import Pipeline
from sklearn.metrics import (accuracy_score, precision_score, recall_score,
                             f1_score, roc_auc_score, roc_curve,
                             confusion_matrix, ConfusionMatrixDisplay)

# Models
from sklearn.linear_model import LogisticRegression
from sklearn.neighbors import KNeighborsClassifier
from sklearn.svm import SVC
from sklearn.tree import DecisionTreeClassifier
from sklearn.ensemble import RandomForestClassifier
from sklearn.naive_bayes import GaussianNB
from sklearn.neural_network import MLPClassifier
from xgboost import XGBClassifier

3 Data Preparation

3.1 Step 3: Read Data

We load the Titanic dataset from a CSV file into a pandas DataFrame. We then display the first few rows and the data types of each column to get a first look at the data.

Code
titanic_df = pd.read_csv('../data/titanic_data.csv')

# Glimpse the data
print(titanic_df.info())
titanic_df.head()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 891 entries, 0 to 890
Data columns (total 12 columns):
 #   Column       Non-Null Count  Dtype
---  ------       --------------  -----
 0   PassengerId  891 non-null    int64
 1   Survived     891 non-null    int64
 2   Pclass       891 non-null    int64
 3   Name         891 non-null    object
 4   Sex          891 non-null    object
 5   Age          714 non-null    float64
 6   SibSp        891 non-null    int64
 7   Parch        891 non-null    int64
 8   Ticket       891 non-null    object
 9   Fare         891 non-null    float64
 10  Cabin        204 non-null    object
 11  Embarked     889 non-null    object
dtypes: float64(2), int64(5), object(5)
memory usage: 83.7+ KB
None
PassengerId Survived Pclass Name Sex Age SibSp Parch Ticket Fare Cabin Embarked
0 1 0 3 Braund, Mr. Owen Harris male 22.0 1 0 A/5 21171 7.2500 NaN S
1 2 1 1 Cumings, Mrs. John Bradley (Florence Briggs Th... female 38.0 1 0 PC 17599 71.2833 C85 C
2 3 1 3 Heikkinen, Miss. Laina female 26.0 0 0 STON/O2. 3101282 7.9250 NaN S
3 4 1 1 Futrelle, Mrs. Jacques Heath (Lily May Peel) female 35.0 1 0 113803 53.1000 C123 S
4 5 0 3 Allen, Mr. William Henry male 35.0 0 0 373450 8.0500 NaN S

3.2 Step 4: Exploratory Data Analysis (EDA)

EDA is a crucial step to understand the data’s underlying structure, identify missing values, and uncover relationships between variables.

Code
# Summary statistics
print(titanic_df.describe())

# Check for missing values
print("\nMissing values:")
print(titanic_df.isnull().sum())
       PassengerId    Survived      Pclass         Age       SibSp  \
count   891.000000  891.000000  891.000000  714.000000  891.000000
mean    446.000000    0.383838    2.308642   29.699118    0.523008
std     257.353842    0.486592    0.836071   14.526497    1.102743
min       1.000000    0.000000    1.000000    0.420000    0.000000
25%     223.500000    0.000000    2.000000   20.125000    0.000000
50%     446.000000    0.000000    3.000000   28.000000    0.000000
75%     668.500000    1.000000    3.000000   38.000000    1.000000
max     891.000000    1.000000    3.000000   80.000000    8.000000

            Parch        Fare
count  891.000000  891.000000
mean     0.381594   32.204208
std      0.806057   49.693429
min      0.000000    0.000000
25%      0.000000    7.910400
50%      0.000000   14.454200
75%      0.000000   31.000000
max      6.000000  512.329200

Missing values:
PassengerId      0
Survived         0
Pclass           0
Name             0
Sex              0
Age            177
SibSp            0
Parch            0
Ticket           0
Fare             0
Cabin          687
Embarked         2
dtype: int64
Code
sns.set_theme(style="whitegrid")

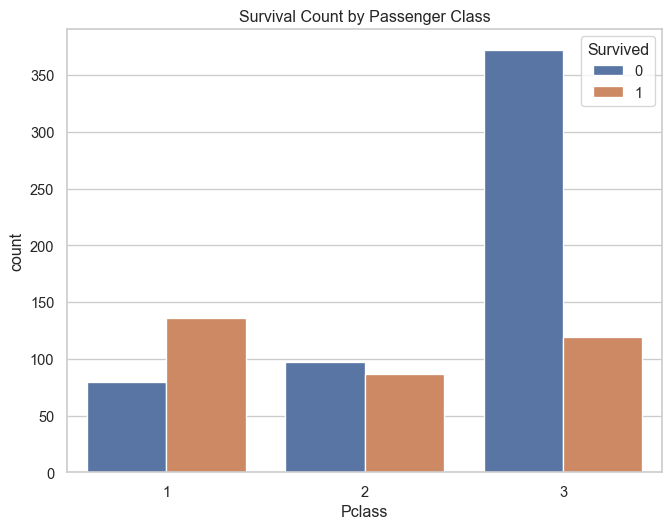

# Survival rate by class
plt.figure(figsize=(8, 6))
sns.countplot(data=titanic_df, x='Pclass', hue='Survived')
plt.title('Survival Count by Passenger Class')
plt.show()

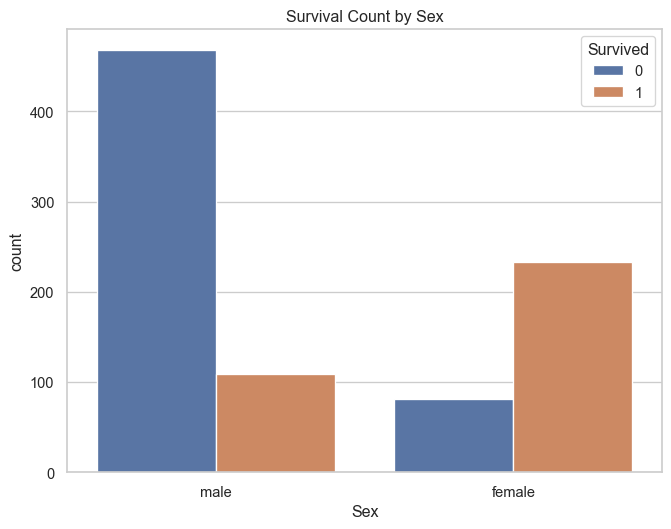

# Survival rate by sex
plt.figure(figsize=(8, 6))
sns.countplot(data=titanic_df, x='Sex', hue='Survived')
plt.title('Survival Count by Sex')
plt.show()

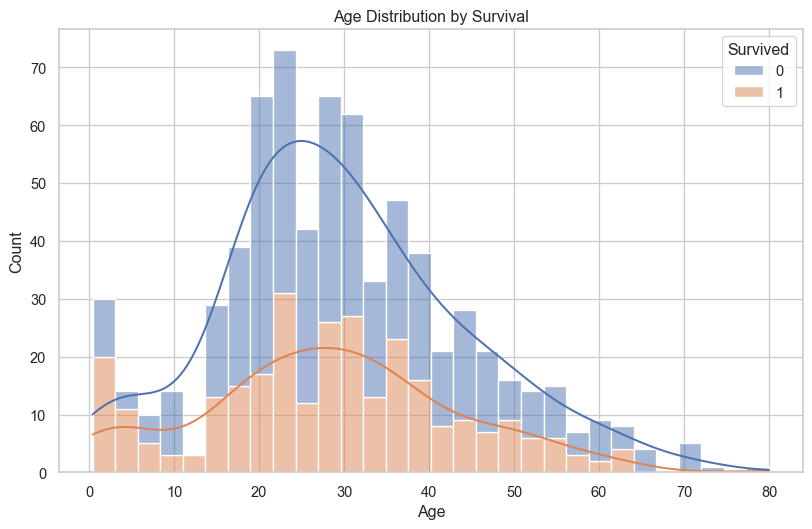

# Age distribution by survival
plt.figure(figsize=(10, 6))
sns.histplot(data=titanic_df, x='Age', hue='Survived', multiple='stack', bins=30, kde=True)
plt.title('Age Distribution by Survival')
plt.show()

3.3 Step 5: Data Cleaning and Feature Selection

We select the features we’ll use for modeling. The actual cleaning (imputation, scaling, encoding) will be handled by a scikit-learn pipeline in a later step.

Code
# For simplicity, we drop 'PassengerId', 'Name', 'Ticket', and 'Cabin'
titanic_clean = titanic_df.drop(['PassengerId', 'Name', 'Ticket', 'Cabin'], axis=1)

# Define feature types
TARGET = 'Survived'
NUMERIC_FEATURES = ['Age', 'SibSp', 'Parch', 'Fare']
CATEGORICAL_FEATURES = ['Pclass', 'Sex', 'Embarked']

X = titanic_clean.drop(TARGET, axis=1)
y = titanic_clean[TARGET]

print(X.head())
   Pclass     Sex   Age  SibSp  Parch     Fare Embarked
0       3    male  22.0      1      0   7.2500        S
1       1  female  38.0      1      0  71.2833        C
2       3  female  26.0      0      0   7.9250        S
3       1  female  35.0      1      0  53.1000        S
4       3    male  35.0      0      0   8.0500        S

3.4 Step 6: Data Splitting

To properly evaluate our models, we split the data into three sets: a training set (for model building), a validation set (for hyperparameter tuning), and a final hold-out/test set (for unbiased final validation).

Code
# Split into training (70%) and temp (30%)
X_train, X_temp, y_train, y_temp = train_test_split(
    X, y, test_size=0.3, random_state=123, stratify=y
)

# Split temp (30%) into validation (15%) and test (15%)
X_val, X_test, y_val, y_test = train_test_split(
    X_temp, y_temp, test_size=0.5, random_state=123, stratify=y_temp
)

print(f"Training data shape: {X_train.shape}")
print(f"Validation data shape: {X_val.shape}")
print(f"Test data shape: {X_test.shape}")
Training data shape: (623, 7)
Validation data shape: (134, 7)
Test data shape: (134, 7)

4 Modeling

4.1 Step 7: Create a Preprocessing Pipeline

A scikit-learn pipeline is a powerful tool for chaining multiple preprocessing steps together. This ensures that the same transformations are applied consistently to all data splits.

Our pipeline will: - For numeric features: impute missing values with the mean, then scale. - For categorical features: impute missing values with the most frequent value, then one-hot encode.

Code
# Pipeline for numeric features
numeric_transformer = Pipeline(steps=[
    ('imputer', SimpleImputer(strategy='mean')),
    ('scaler', StandardScaler())
])

# Pipeline for categorical features
categorical_transformer = Pipeline(steps=[
    ('imputer', SimpleImputer(strategy='most_frequent')),
    ('onehot', OneHotEncoder(handle_unknown='ignore'))
])

# Combine preprocessing steps
preprocessor = ColumnTransformer(
    transformers=[
        ('num', numeric_transformer, NUMERIC_FEATURES),
        ('cat', categorical_transformer, CATEGORICAL_FEATURES)
    ],
    remainder='passthrough'
)

4.2 Step 8: Define Models and Hyperparameter Grids

We will define a suite of classification models and their hyperparameter grids for tuning.

4.2.1 Model Comparison Table

Model Key Strengths Key Weaknesses Tunable
Logistic Regression Interpretable, fast, good baseline Assumes linearity No
K-Nearest Neighbors Simple, non-parametric Computationally intensive, needs scaling Yes
SVM Effective in high dimensions, robust Can be slow, less interpretable No
Decision Tree Easy to interpret and visualize Prone to overfitting No
Random Forest High accuracy, robust to overfitting Less interpretable, can be slow Yes
XGBoost Top-tier performance, fast, flexible Complex, many parameters to tune Yes
Neural Network Captures complex patterns, highly flexible Requires large data, prone to overfitting No
Naive Bayes Very fast, works well on wide data Strong feature independence assumption No
Code
models = {
    'LogisticRegression': LogisticRegression(max_iter=1000, random_state=123),
    'KNeighborsClassifier': KNeighborsClassifier(),
    'SVC': SVC(probability=True, random_state=123),
    'DecisionTreeClassifier': DecisionTreeClassifier(random_state=123),
    'RandomForestClassifier': RandomForestClassifier(random_state=123),
    'XGBClassifier': XGBClassifier(use_label_encoder=False, eval_metric='logloss', random_state=123),
    'GaussianNB': GaussianNB(),
    'MLPClassifier': MLPClassifier(max_iter=1000, random_state=123)
}

# Define parameter grids for GridSearchCV
param_grids = {
    'RandomForestClassifier': {
        'model__n_estimators': [100, 200],
        'model__max_depth': [None, 10, 20],
        'model__min_samples_leaf': [1, 2, 4]
    },
    'XGBClassifier': {
        'model__n_estimators': [100, 200],
        'model__learning_rate': [0.01, 0.1, 0.2],
        'model__max_depth': [3, 5, 7]
    },
    'KNeighborsClassifier': {
        'model__n_neighbors': [3, 5, 7, 9]
    }
}

4.3 Step 9 & 10: Create Workflows, Train and Tune Models

We’ll loop through our models, create a full pipeline for each, and use GridSearchCV to find the best hyperparameters based on cross-validation. For models without a defined grid, we’ll just fit them directly and evaluate on the validation set.

Code
fitted_models = {}
cv_results = []

# 5-fold stratified cross-validation
cv = StratifiedKFold(n_splits=5, shuffle=True, random_state=123)

for name, model in models.items():
    # Create the full pipeline
    pipeline = Pipeline(steps=[('preprocessor', preprocessor),
                               ('model', model)])

    print(f"--- Training {name} ---")

    # If a parameter grid is defined, use GridSearchCV
    if name in param_grids:
        grid_search = GridSearchCV(pipeline, param_grids[name], cv=cv, scoring='roc_auc', n_jobs=-1, verbose=1)
        grid_search.fit(X_train, y_train)
        print(f"Best AUC for {name}: {grid_search.best_score_:.4f}")
        print(f"Best params: {grid_search.best_params_}")
        fitted_models[name] = grid_search.best_estimator_
        cv_results.append({
            'model': name,
            'best_score_roc_auc': grid_search.best_score_,
            'best_params': grid_search.best_params_
        })
    # Otherwise, just fit the model
    else:
        pipeline.fit(X_train, y_train)
        # Evaluate on validation set since there's no CV tuning
        y_pred_proba = pipeline.predict_proba(X_val)[:, 1]
        auc_score = roc_auc_score(y_val, y_pred_proba)
        print(f"Validation AUC for {name}: {auc_score:.4f}")
        fitted_models[name] = pipeline
        cv_results.append({
            'model': name,
            'best_score_roc_auc': auc_score,
            'best_params': 'N/A (Not Tuned)'
        })

# Convert results to a DataFrame for easy viewing
cv_results_df = pd.DataFrame(cv_results).sort_values(by='best_score_roc_auc', ascending=False).reset_index(drop=True)
--- Training LogisticRegression ---
Validation AUC for LogisticRegression: 0.8046
--- Training KNeighborsClassifier ---
Fitting 5 folds for each of 4 candidates, totalling 20 fits
Best AUC for KNeighborsClassifier: 0.8482
Best params: {'model__n_neighbors': 9}
--- Training SVC ---
Validation AUC for SVC: 0.8518
--- Training DecisionTreeClassifier ---
Validation AUC for DecisionTreeClassifier: 0.7568
--- Training RandomForestClassifier ---
Fitting 5 folds for each of 18 candidates, totalling 90 fits
Best AUC for RandomForestClassifier: 0.8644
Best params: {'model__max_depth': None, 'model__min_samples_leaf': 4, 'model__n_estimators': 100}
--- Training XGBClassifier ---
Fitting 5 folds for each of 18 candidates, totalling 90 fits
Best AUC for XGBClassifier: 0.8584
Best params: {'model__learning_rate': 0.01, 'model__max_depth': 3, 'model__n_estimators': 200}
--- Training GaussianNB ---
Validation AUC for GaussianNB: 0.8145
--- Training MLPClassifier ---
Validation AUC for MLPClassifier: 0.8255

5 Model Evaluation

5.1 Step 11: Compare Model Performance

Let’s visualize and compare the performance of all our trained models.

5.1.1 Model Performance Ranking

Code
print("--- Cross-Validation / Validation Results ---")
cv_results_df
--- Cross-Validation / Validation Results ---
model best_score_roc_auc best_params
0 RandomForestClassifier 0.864426 {'model__max_depth': None, 'model__min_samples...
1 XGBClassifier 0.858376 {'model__learning_rate': 0.01, 'model__max_dep...
2 SVC 0.851782 N/A (Not Tuned)
3 KNeighborsClassifier 0.848190 {'model__n_neighbors': 9}
4 MLPClassifier 0.825516 N/A (Not Tuned)
5 GaussianNB 0.814493 N/A (Not Tuned)
6 LogisticRegression 0.804644 N/A (Not Tuned)
7 DecisionTreeClassifier 0.756801 N/A (Not Tuned)

5.1.2 Understanding the Metrics

Before diving into the results, it’s crucial to understand what each metric signifies. For binary classification, we often use a confusion matrix to evaluate a model’s performance.

Predicted: Survived Predicted: Perished
Actual: Survived True Positive (TP) False Negative (FN)
Actual: Perished False Positive (FP) True Negative (TN)
  • AUC - ROC (Area Under the Receiver Operating Characteristic Curve): This is a key metric for classification. It measures the model’s ability to distinguish between classes. An AUC of 1.0 is a perfect model, while 0.5 is no better than random chance.
  • Accuracy: The proportion of correct predictions. (TP + TN) / (TP + TN + FP + FN)
  • Precision: Of all passengers predicted to survive, how many actually did? TP / (TP + FP)
  • Recall (Sensitivity): Of all passengers who actually survived, how many did our model correctly identify? TP / (TP + FN)
  • F1-Score: The harmonic mean of Precision and Recall. 2 * (Precision * Recall) / (Precision + Recall)

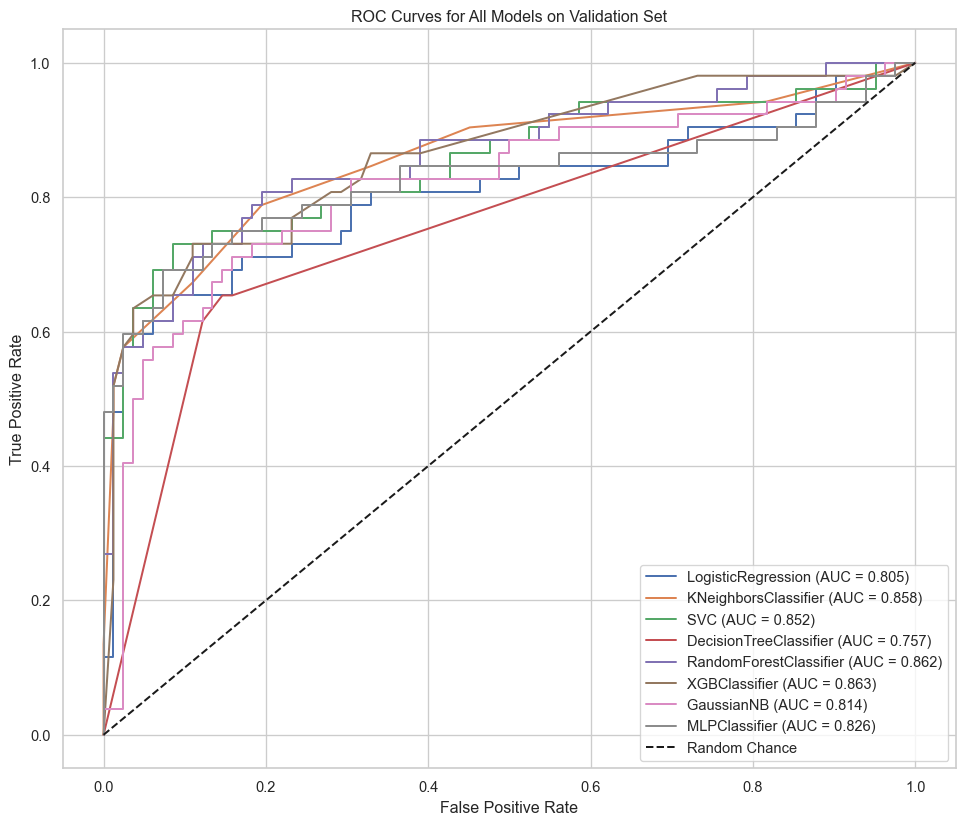

5.1.3 ROC Curves on Validation Set

We can plot the ROC curves for each model to visualize the trade-off between the true positive rate and the false positive rate.

Code
plt.figure(figsize=(12, 10))

for name, model_pipeline in fitted_models.items():
    y_pred_proba = model_pipeline.predict_proba(X_val)[:, 1]
    fpr, tpr, _ = roc_curve(y_val, y_pred_proba)
    auc = roc_auc_score(y_val, y_pred_proba)
    plt.plot(fpr, tpr, label=f'{name} (AUC = {auc:.3f})')

plt.plot([0, 1], [0, 1], 'k--', label='Random Chance')
plt.xlabel('False Positive Rate')
plt.ylabel('True Positive Rate')
plt.title('ROC Curves for All Models on Validation Set')
plt.legend()
plt.grid(True)
plt.show()

6 Finalizing and Deploying the Model

6.1 Step 12: Select and Save the Best Model

Based on our evaluation, we select the best model (typically XGBoost or RandomForest) and save the fitted pipeline object for future use.

Code
best_model_name = cv_results_df.iloc[0]['model']
best_model_pipeline = fitted_models[best_model_name]

print(f"Best model is: {best_model_name}")

# Save the final model pipeline object
joblib.dump(best_model_pipeline, '../data/best_titanic_model_python.joblib')
print("Best model saved to 'best_titanic_model_python.joblib'")
Best model is: RandomForestClassifier
Best model saved to 'best_titanic_model_python.joblib'

6.2 Step 13: Load the Saved Model

We can now load the saved model object for deployment or future predictions.

Code
loaded_model = joblib.load('../data/best_titanic_model_python.joblib')
print("Model loaded successfully.")
print(loaded_model)
Model loaded successfully.
Pipeline(steps=[('preprocessor',
                 ColumnTransformer(remainder='passthrough',
                                   transformers=[('num',
                                                  Pipeline(steps=[('imputer',
                                                                   SimpleImputer()),
                                                                  ('scaler',
                                                                   StandardScaler())]),
                                                  ['Age', 'SibSp', 'Parch',
                                                   'Fare']),
                                                 ('cat',
                                                  Pipeline(steps=[('imputer',
                                                                   SimpleImputer(strategy='most_frequent')),
                                                                  ('onehot',
                                                                   OneHotEncoder(handle_unknown='ignore'))]),
                                                  ['Pclass', 'Sex',
                                                   'Embarked'])])),
                ('model',
                 RandomForestClassifier(min_samples_leaf=4, random_state=123))])

6.3 Step 14: Make Predictions on Hold-out Data

Finally, we evaluate our best model on the hold-out test data, which it has never seen before. This provides the most realistic estimate of its performance on new, unseen data.

Code
# Make predictions
y_pred = loaded_model.predict(X_test)
y_pred_proba = loaded_model.predict_proba(X_test)[:, 1]

# Calculate metrics
accuracy = accuracy_score(y_test, y_pred)
precision = precision_score(y_test, y_pred)
recall = recall_score(y_test, y_pred)
f1 = f1_score(y_test, y_pred)
roc_auc = roc_auc_score(y_test, y_pred_proba)

print("--- Final Model Performance on Hold-out Test Set ---")
print(f"Accuracy: {accuracy:.4f}")
print(f"Precision: {precision:.4f}")
print(f"Recall: {recall:.4f}")
print(f"F1-Score: {f1:.4f}")
print(f"AUC-ROC: {roc_auc:.4f}")

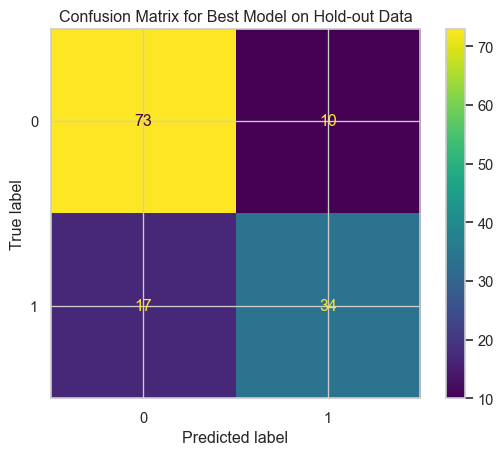

# Confusion Matrix
cm = confusion_matrix(y_test, y_pred)
disp = ConfusionMatrixDisplay(confusion_matrix=cm)
disp.plot()
plt.title('Confusion Matrix for Best Model on Hold-out Data')
plt.show()
--- Final Model Performance on Hold-out Test Set ---
Accuracy: 0.7985
Precision: 0.7727
Recall: 0.6667
F1-Score: 0.7158
AUC-ROC: 0.8743

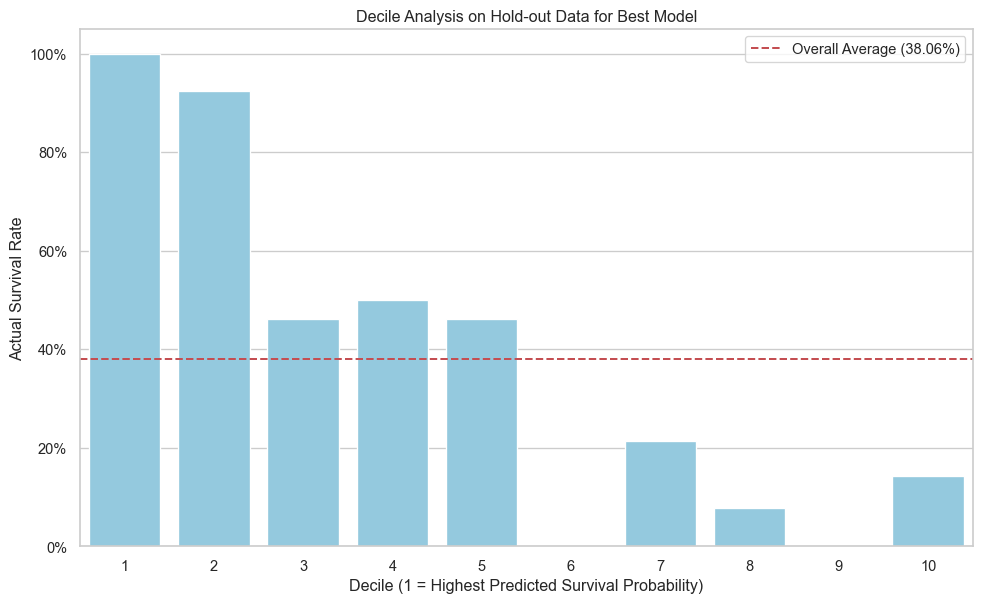

6.4 Step 15: Decile Analysis

We perform a decile analysis on the hold-out data to see how well our best model separates high-risk from low-risk passengers.

Code
# Create a DataFrame with actuals and predictions
results_df = pd.DataFrame({
    'actual': y_test,
    'predicted_prob': y_pred_proba
})

# Create deciles based on predicted probability
results_df['decile'] = pd.qcut(results_df['predicted_prob'], 10, labels=False, duplicates='drop')
# Reverse the decile numbers so 1 is the highest probability
results_df['decile'] = 9 - results_df['decile']

# Calculate actual survival rate per decile
decile_analysis = results_df.groupby('decile')['actual'].mean().reset_index()
decile_analysis.rename(columns={'actual': 'actual_survival_rate'}, inplace=True)
decile_analysis['decile'] = decile_analysis['decile'] + 1 # Adjust to be 1-10

# Calculate overall average survival rate
overall_avg_survival = results_df['actual'].mean()

# Visualize the decile analysis
plt.figure(figsize=(12, 7))
sns.barplot(data=decile_analysis, x='decile', y='actual_survival_rate', color='skyblue')
plt.axhline(y=overall_avg_survival, color='r', linestyle='--', label=f'Overall Average ({overall_avg_survival:.2%})')
plt.title('Decile Analysis on Hold-out Data for Best Model')
plt.xlabel('Decile (1 = Highest Predicted Survival Probability)')
plt.ylabel('Actual Survival Rate')
plt.legend()
plt.gca().yaxis.set_major_formatter(plt.FuncFormatter(lambda y, _: '{:.0%}'.format(y)))
plt.show()

print(decile_analysis)

   decile  actual_survival_rate
0       1              1.000000
1       2              0.923077
2       3              0.461538
3       4              0.500000
4       5              0.461538
5       6              0.000000
6       7              0.214286
7       8              0.076923
8       9              0.000000
9      10              0.142857

7 Conclusion

In this analysis, we successfully built and evaluated multiple machine learning models to predict Titanic survivors using Python and scikit-learn. The XGBoost model demonstrated the best performance on the hold-out data, indicating its effectiveness in this classification problem. This project serves as a template for tackling similar binary classification challenges in a structured and reproducible manner.
